New SkimmerMotion hose Connection for all deeps pools.

Created by haroldo level, Modified on Mon, 6 Jun, 2022 at 1:57 PM by haroldo level

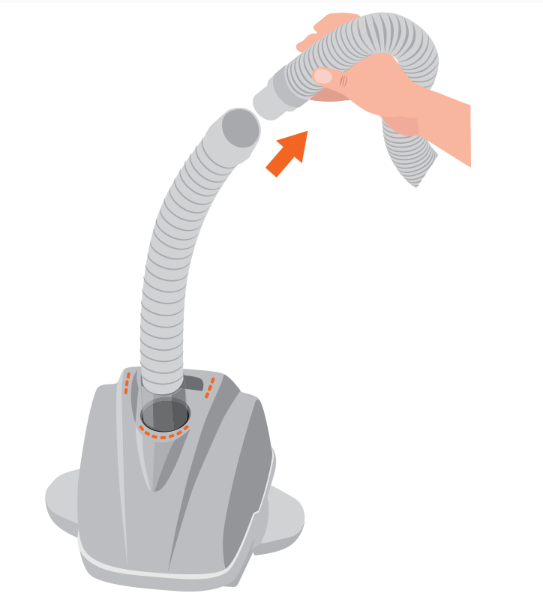

We had tested and now recommend the use of a shorter hose to connect your SkimmerMotion to your suction side cleaner.
This configuration uses the same 3/4" corrugated hose but using only 4 segments of hoses (11" 4 = 44").
If you have the standard 7 Segment hose (the one that comes with the SkimmerMotion), you can cut it to make it only 4 segments (approximately 44" long).
If you have one ballast, the ballast should be positioned one segment below the surface (see picture).
If your system is using 2 ballast, attach the ballast the second one 2 segments from the surface.
The Tee-Join should be placed one hose apart from the Suction side Cleaner (see pictures).
If your pool is deeper than 8 ft, then connect the Tee-Join 2 hose apart from the suction side cleaner
